Self-Adjusting Brake Cable - 2117

Automotive In Stock

9" rear drum brake systems

Ships in 1-2 weeks
Ohio Assembly
No minimum orders
Request Manufacturing Quote Custom quantities available
Engineering Support

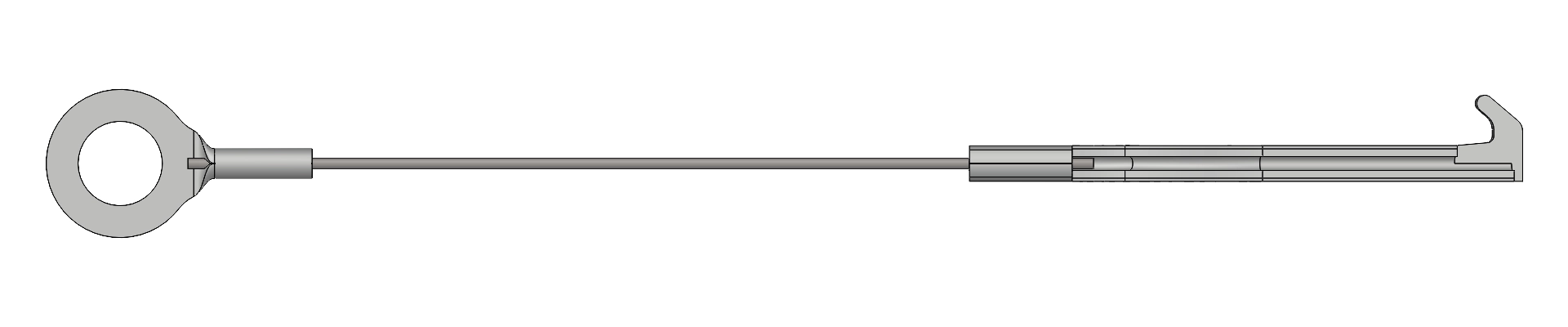

Top view of brake cable assembly Part 2117
Top view showing cable assembly configuration
Left-click drag to rotate • Right-click drag to pan • Scroll to zoom

Terminal Configuration

Terminal A
Automotive Eye Terminal
6OUT Terminal - Medium Datasheet
Terminal B
Short Hook Terminal
SHORT Terminal - Medium Datasheet
Technical Drawings: Click the zoom buttons above to view detailed dimensional drawings for each terminal
Cable Dimensions
8.50" cable, 10.56" assembly
Terminal Configuration
Automotive Eye Terminal Short Hook Terminal
Actions & Resources
Request Manufacturing Quote Custom quantities available
Download Technical Datasheet Complete specifications & dimensions
3D Model Engineering Support
Terminal specifications available by clicking terminal images above

Product Description

Roy I. Kaufman, Inc Part No. 2117 is an automatic brake adjustment cable used on 9 inch rear drum brake systems. This cable is attached to a lever inside the rear drum brake that adjusts the brake shoes as they wear. The adjustment only takes place when the vehicle is run in reverse. The quality of this cable is very important as the brake system is one of the most critical safety systems.

Detailed Specifications

Cable Length: 8.50 inches
Assembly Length: 10.56 inches
Wire Construction: 7x7
Wire Diameter: 0.062 inches
Terminal A: Automotive Eye Terminal
Terminal B: Short Hook Terminal
Spring: No Spring
Material: Galvanized steel
Paint Color: No Paint

Cross References

This Kaufman part cross-references with the following industry part numbers:

Dorman: HW2117 Raybestos: H2117
Note: Cross-references are provided for identification purposes only. Always verify compatibility by dimensions before ordering.

Application Information

Used on various 9" rear drum brake applications

Always verify compatibility by measuring cable and assembly lengths
Important: Always verify compatibility by measuring cable and assembly lengths before ordering. Application information is for reference only.
